Audionet MAX

Dettagli

Prezzo di listino al 4.11.2022.

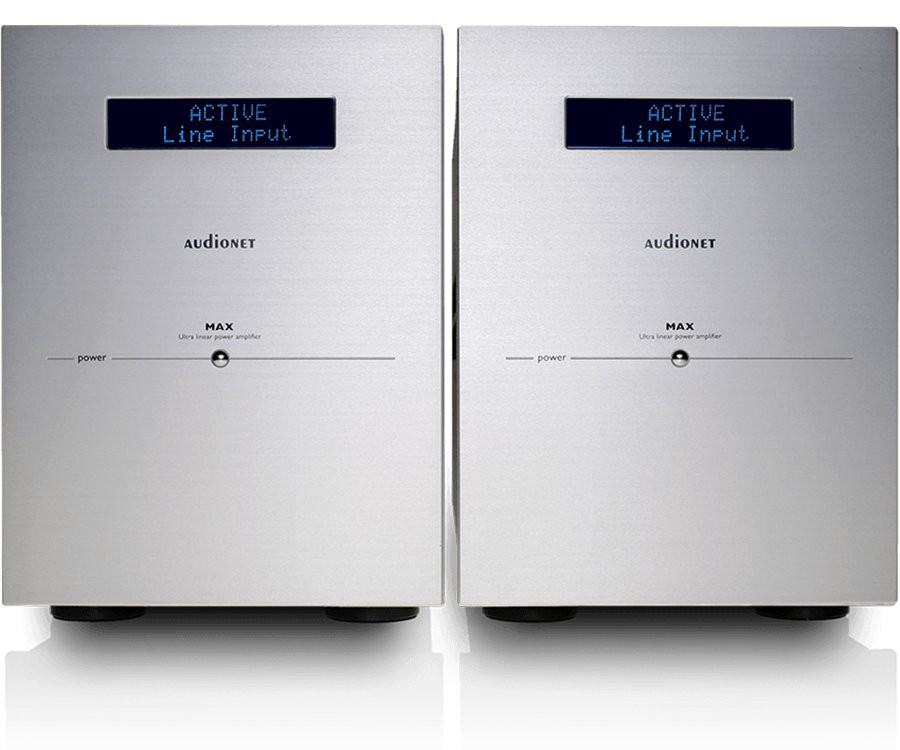

Audionet MAX Reference Mono Power Amplifier (prezzo per la coppia).

Function Microprocessor controlled mono reference amplifier Special Features • Audionet ULA technology (Ultra-Linear-Amplifier) • Magnetically and capacitatively optimized construction • Signal paths are kept to a minimum • No capacitors and electromechanical components in the signal path • Completely DC coupeld • Four separate power supplies for controller, input and driving stage and positive and negative operating voltage for the power stage • Toroid transformer with 80 VA for the input and driving stage with separate windings for positive and negative operating voltage • Two toroid transformer with 1,000 VA for positive and negative operating voltage for the power stage • Four impulse-stable high-current capacitors with filtering capacity totalling 156,000 µF • Discrete, extremely fast and stable driver and output stages • Bi-wiring terminal with two pairs of Furutech Rhodium connectors • Remote activation over Audionet Link (optical waveguide) and via input signal (3 switchable sensitivities) • Timer • Large-size, two-line VDF-display • Screen saver • Automatic mains phase detection • Microprocessor unit controls all functions and permanently monitors DC, HF, temperature and overload In- and Outputs Audio inputs: 1 Furutech RCA line, gold-plated, teflon insulated 1 XLR balanced, gold-plated Loudspeaker outputs: 2 pairs Furutech 4mm-jacks, rhodium-plated Remote activation: 2 Audionet Links, optical (in- and output) Technical Data Output: 400 W into 8 Ohm 700 W into 4 Ohm 1,100 W into 2 Ohm Frequency Response: 0 – 500,000 Hz (-3 dB) Damping Factor: > 1,800 @ 10 kHz > 10,000 @ 100 Hz Harmonic Spectrum: k2 typ. -117 dB for 25 W @ 4 Ohm k3 typ. -123 dB for 25 W @ 4 Ohm Intermodulation: < -110 dB SMPTE 100 Hz : 20 kHz, 4 : 1, 50 W @ 4 Ohm THD + N: > -106 dB at 1 kHz, 25 W to 700 W @ 4 Ohm SNR: > 125 dB Input Impedance: RCA: 37 kOhm, 100 pF XLR: 3 kOhm, 100 pF Power Consumption: max. 2,000 W Mains connection: 120 or 230 V, 50...60 Hz Dimensions: width 215 mm height 285 mm depth 500 mm Weight: 38 kg/mono block Prezzo inteso per la coppia
