Audionet DNC

Dettagli

Prezzo di listino al 4.11.2022.

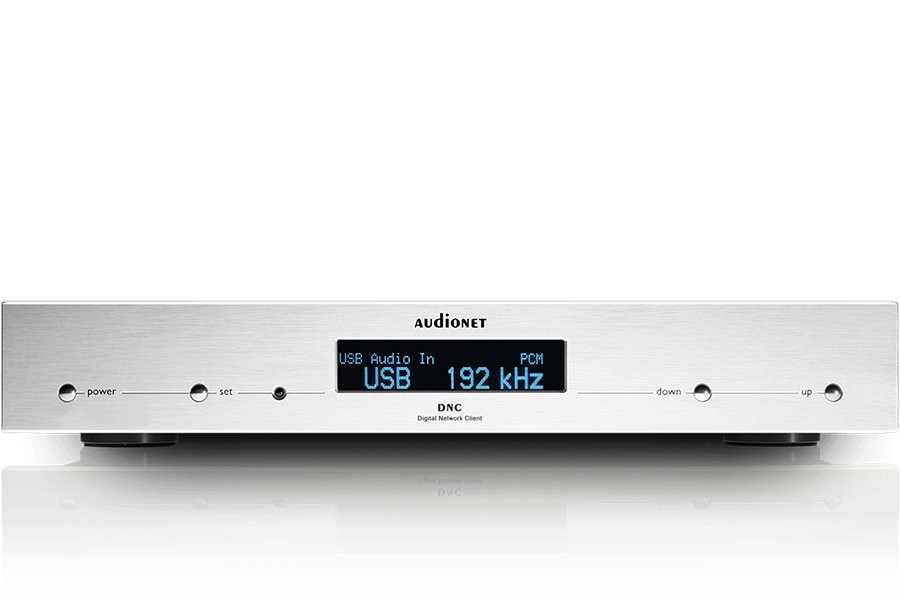

Audionet DNC Digital Network 2.0 Client & D/A-Converter with Equalizer, incl. Metal remote control RC 2 Function Network-compatible streaming client and D/A converter. Special Features • Streaming client for internet radio playback (vTuner Internet Radio Service), network devices (UPnP mediaserver) and music data from USB memory sticks • Supported streaming client formats: WAV (up to 192kHz/24bit), FLAC (up to 192kHz/24bit), ALAC (up to 96kHz/24bit), AIFF (uncompressed, up to 192kHz/24bit), AAC, WMA, OGG-Vorbis • USB 2.0 for external media control and USB Audio 2.0 (up to 192kHz/24bit) • Analogue stereo outputs • Parametric equalizer and delay manager for all outputs • Audionet Intelligent Sampling Technology with asynchronous upsampling up to 192kHz/24bit • Precise clock generator for the elimination of clock flank deviations (jitter) • Sampling frequencies and resolution of the digital inputs: 32 kHz to 192kHz/24bit • Audionet HighBit interface for all audio data including DVD-A and SACD • FM radio receiver with RDS function • Audionet ULA technology (Ultra Linear Amplifier) • Fully DC-coupled, no capacitors in the signal path • One 50 VA toroidal mains transformer for analogue signal processing • 44.000 µF total filtering capacitance • Separate power supplies for digital and analogue section • Gold-doped, pure silver, solid core signal cabling • Microprocessor with dedicated power supply controls and handles all functions • Remote activation of other Audionet component via Audionet Link (optical fiber) • Automatic mains phase detection Delay manager • Adjustment range: Distance Listening position <-> loudspeaker 0m to 7m • Automatic calculation of the delays resulting from the distance settings Equalizer • 5 MPE (Minimum Phase Equalizer) for each main channel • Adjustment range for each MPE: Filter type Peak-Filter, High-Shelve, Low-Shelve, high-order filter, low-order filter • Frequency (f): 20 Hz to 20 kHz, 128 logarithmic steps • Gain: -12 dB to +6 dB, 0.5 dB-steps • Quality (Q): 0.3 to 8.0, in 20 logarithmic steps • Import of CARMA equalizer settings In- and Outputs Digital audio inputs: 2 RCA, 75 Ohm, gold plated, Teflon insulated 2 optical (TosLink) 1 Neutrik XLR AES/EBU, 110 Ohm, gold-plated, teflon insulated 1 USB Audio type B Audio outputs: 1 pair RCA, gold-plated, teflon insulated 1 pair Neutrik XLR balanced, gold-plated Additional connectors: 1 USB 2.0 1 Ethernet (RJ 45) WLAN antenna (SMA) FM-antenna, 75 Ohm RS232 Screw connector for additio- nal earth connection, gold plated Remote activation: 1 Audionet Link OUT, optical (TosLink) 1 Audionet Link IN, optical (TosLink) 3.5mm-jack plug as trigger output with 12V-switching voltage External power supply: 5-pin socket for EPS G2/EPX Mains: IEC male power insert connector Technical Data Frequency response: 0 – 96,000 Hz (-3 dB), DC-coupled Slew Rate: 10 V/µsec Channel separation: between channels: >100 dB at 20 kHz Output voltage: Line: max. 3.2 Vrms XLR: max. 6.4 Vrms Output impedance: Line: 24 Ohm real XLR: 48 Ohm real Digital inputs Sample frequency: 32 to192 kHz THD + N: < -104 dB Mains: 220…240 volts / 50…60 Hz or 100…120 volts / 50…60 Hz Power consumption: < 1 W stand by, max. 85 W Dimensions: width 430 mm height 70 mm depth 310 mm Weight: 8 kg
