Audionet AMP

Dettagli

Prezzo di listino al 4.11.2022.

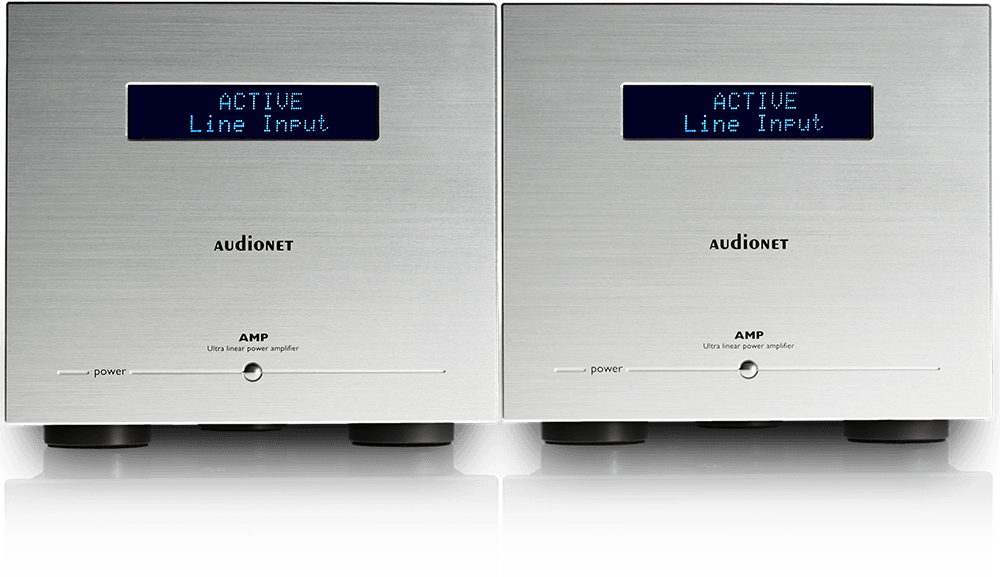

Audionet AMP High Performance Mono Power Amplifier (coppia) Function Microprocessor controlled mono power amplifier. Special Features • Audionet ULA technology (Ultra-Linear-Amplifier) • Magnetically and capacitatively optimized construction • Signal paths are kept to a minimum • No capacitors and electromechanical components in the signal path • Completely DC coupeld • Separate power supply for input and power stage • Toroid transformer with 850 VA • 2 impulse-stable high-current capacitors with filtering capacity totalling 82,000 µF • Discrete, extremely fast and stable driver and output stages • Automatic mains phase detection • Large-size, two-line VDF-display • Screen saver • Remote activation over Audionet Link (optical waveguide) and via input signal (3 switchable sensitivities) • Microprocessor unit controls all functions and permanently monitors DC, HF, temperature and overload In- and Outputs Audio inputs: 1 Furutech RCA line, gold-plated, teflon insulated 1 XLR balanced, gold-plated Loudspeaker outputs: 2 pair Furutech 4mm-jacks, rhodium-plated Remote activation: 2 Audionet Links, optical (in- and output) Technical Data Output: 200 W into 8 Ohm 350 W into 4 Ohm 550 W into 2 Ohm 750 W into 1 Ohm Filtering capacity: 82,000 µF Frequency Response: 0 – 300,000 Hz (-3 dB) Damping Factor: > 1,800 @ 10 kHz > 10,000 @ 100 Hz Harmonic Spectrum: k2 typ. -117 dB for 25 W @ 4 Ohm k3 typ. -140 dB for 25 W @ 4 Ohm Intermodulation: < -110 dB SMPTE 100 Hz : 20 kHz, 4 : 1, 50 W @ 4 Ohm THD + N: < -105 dB at 1 kHz, 35 W @ 2 Ohm between 20 Hz and 20 kHz SNR: > 122 dB Input Impedance: RCA: 37 kOhm, 220 pF XLR: 3 kOhm, 170 pF Power Consumption: max. 1,000 W Mains: 120 or 230 V, 50…60 Hz Dimensions: width 215 mm height 190 mm depth 500 mm Weight: 22 kg / mono block Prezzo inteso per la coppia
